Pure Audio Device
The Controller Deck integrates a stereo USB sound card, exposed to the host as a standard USB Audio Class device, for both playback and recording.
USB device identification
Field |
Value |
|---|---|
bcdUSB |
2.00 High Speed |
bDeviceClass |
Miscellaneous Device (239) |
Vendor ID |
|
Product ID |
|
iManufacturer |
LambdaConcept |
iProduct |
PureAudio |
Class |
USB Audio Class (UAC) |
Bitrate |

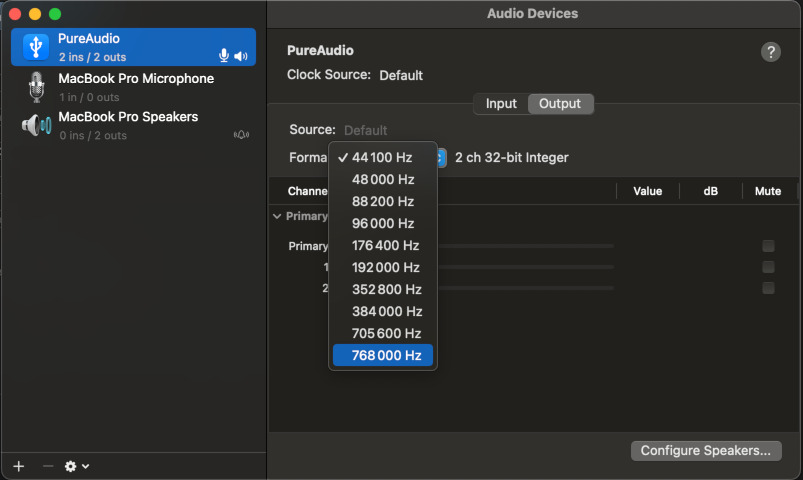

Up to 768 kbit/s stereo, selectable by the host |
Audio input |

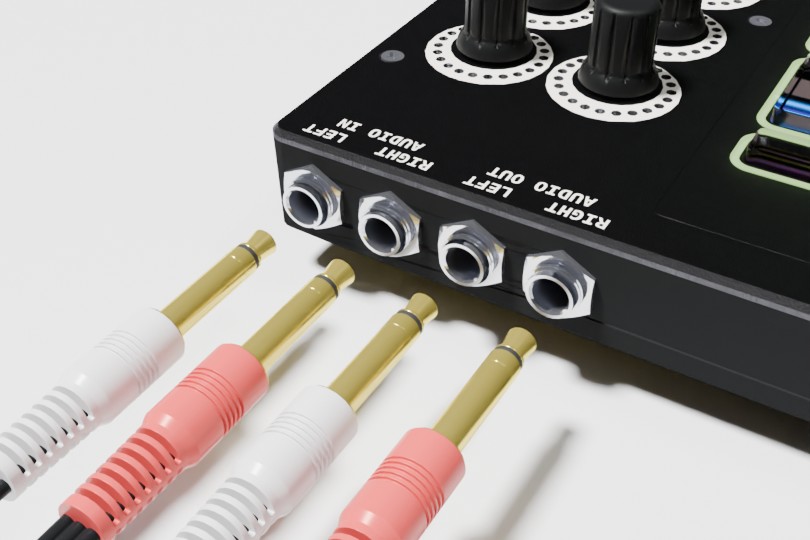

2x 3.5mm TS jack (L + R) |
Audio output |
2x 3.5mm TS jack (L + R) |
USB Descriptor details …
Bus 001 Device 091: ID ffff:1235 LambdaConcept PureAudio
Negotiated speed: High Speed (480Mbps)
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0xffff LambdaConcept
idProduct 0x1235 PureAudio
bcdDevice 1.05
iManufacturer 1 LambdaConcept
iProduct 2 PureAudio
iSerial 3
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x00da
bNumInterfaces 3
bConfigurationValue 1
iConfiguration 0
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 3
bFunctionClass 1 Audio
bFunctionSubClass 0 [unknown]
bFunctionProtocol 32
iFunction 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 1 Control Device
bInterfaceProtocol 32
iInterface 0
AudioControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdADC 2.00
bCategory 8
wTotalLength 0x004b
bmControls 0x00
AudioControl Interface Descriptor:
bLength 8
bDescriptorType 36
bDescriptorSubtype 10 (CLOCK_SOURCE)
bClockID 40
bmAttributes 3 Internal programmable clock
bmControls 0x03
Clock Frequency Control (read/write)
bAssocTerminal 0
iClockSource 4 Any Frequency CMOS Clock Generator
AudioControl Interface Descriptor:
bLength 17
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 2
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bCSourceID 40
bNrChannels 2
bmChannelConfig 0x00000000
iChannelNames 0
bmControls 0x0000
iTerminal 5 Stereo high-performance audio DAC
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 20
wTerminalType 0x0301 Speaker
bAssocTerminal 0
bSourceID 2
bCSourceID 40
bmControls 0x0000
iTerminal 0
AudioControl Interface Descriptor:
bLength 17
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 30
wTerminalType 0x0201 Microphone
bAssocTerminal 0
bCSourceID 40
bNrChannels 2
bmChannelConfig 0x00000000
iChannelNames 0
bmControls 0x0000
iTerminal 6 Stereo high-performance audio ADC
AudioControl Interface Descriptor:
bLength 12
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 30
bCSourceID 40
bmControls 0x0000
iTerminal 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 32
iInterface 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 2
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 32
iInterface 0
AudioStreaming Interface Descriptor:
bLength 16
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 2
bmControls 0x00
bFormatType 1
bmFormats 0x00000001
PCM
bNrChannels 2
bmChannelConfig 0x00000000
iChannelNames 0
AudioStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bSubslotSize 4
bBitResolution 32
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x01 EP 1 OUT
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0308 1x 776 bytes
bInterval 1
AudioStreaming Endpoint Descriptor:
bLength 8
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x00
bmControls 0x00
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 17
Transfer Type Isochronous
Synch Type None
Usage Type Feedback
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 32
iInterface 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 1 Audio
bInterfaceSubClass 2 Streaming
bInterfaceProtocol 32
iInterface 0
AudioStreaming Interface Descriptor:
bLength 16
bDescriptorType 36
bDescriptorSubtype 1 (AS_GENERAL)
bTerminalLink 3
bmControls 0x00
bFormatType 1
bmFormats 0x00000001
PCM
bNrChannels 2
bmChannelConfig 0x00000000
iChannelNames 0
AudioStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 2 (FORMAT_TYPE)
bFormatType 1 (FORMAT_TYPE_I)
bSubslotSize 4
bBitResolution 32
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0308 1x 776 bytes
bInterval 1
AudioStreaming Endpoint Descriptor:
bLength 8
bDescriptorType 37
bDescriptorSubtype 1 (EP_GENERAL)
bmAttributes 0x00
bmControls 0x00
bLockDelayUnits 0 Undefined
wLockDelay 0x0000
